Separator, ciclon

CORMAK C118

Particles' separator working on the basis of centrifugal force. Constant 90-95% efficiency.

Machine features

Metal chassis,
Metal waste container,
Wheeled base,
Ergonomic handling,
Viewer for waste container fill level,
Clamps for quick bag assembly

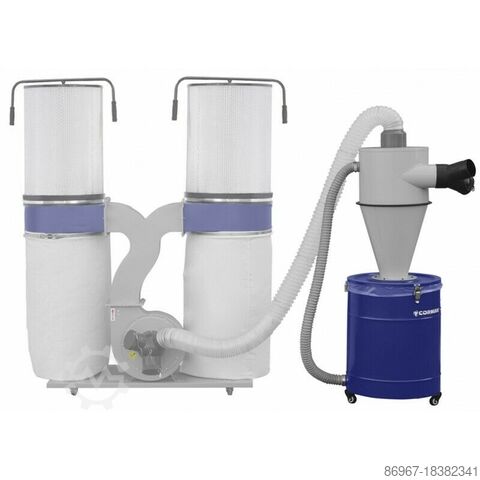

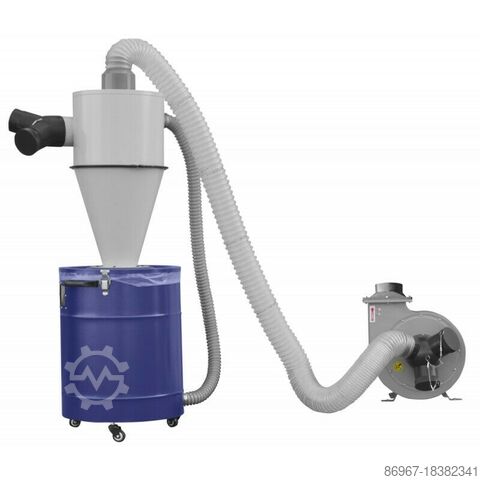

The cyclone is to be connected to a fan or an extractor.

Contaminated air falls into the cylindrical chamber and spins in it, due to which the elements heavier than the gas are removed outside with centrifugal force, hit the walls and lose their energy. The lightest particles are filtered through a dust filter, with the air being removed through the sides of the filter.
Technical data
Container capacity 118 L
Bag dimensions Ø500 x 850 mm
Guedpovu Uugefx Ab Aeh
Inlet diameter 125 mm
Inlet adapter diameters 1 x Ø125 / 2 x Ø100 mm
Outlet diameter 125 mm
Outlet adapter diameters Ø125 mm / Ø100 mm
Weight (net/gross) 24/26.5 kg
Dimensions 785 x 508 x 1545 mm

(the fan, extractor and the hose are not part of the equipment!)
