Table Saw

CORMAK TS315 400V

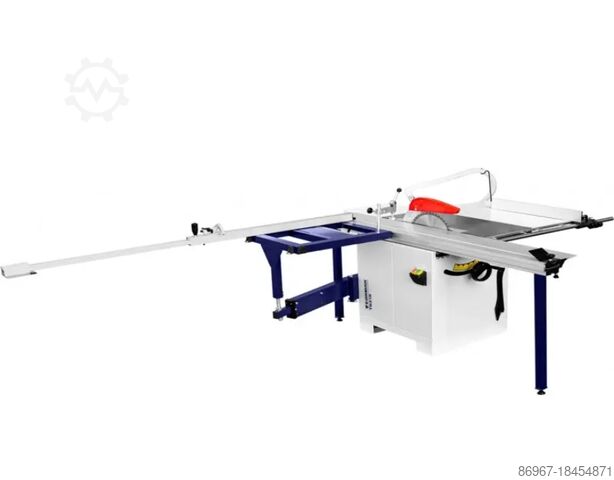

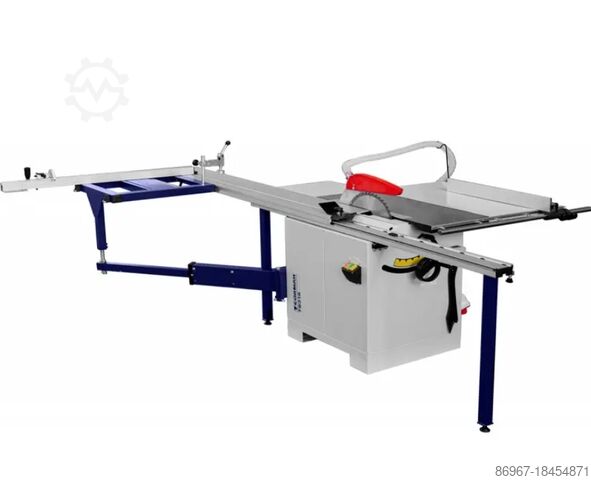

CORMAK TS315 Table Saw

The CORMAK TS315 is a robust, efficient, and precise table saw designed for intensive use in professional woodworking and manufacturing facilities. Equipped with a 315 mm diameter saw blade and a rigid industrial-grade construction, this panel saw is ideal for cutting solid wood, MDF, HDF boards, as well as plastics with similar properties. The powerful motor and extensive working capabilities make the machine suitable for even the most demanding users.

Main advantages of the machine
315 mm saw blade – enables cutting materials up to 100 mm thick at a 90° cutting angle.
Powerful motor 2.8 kW (S1) / 3.3 kW (S6) – ensures stable operation even under maximum load.
Blade speed of 4250 rpm – provides high-quality, smooth cutting results.
Sliding format table 1600 × 238 mm – allows comfortable handling of large furniture panels and sheet materials.
Stable industrial construction – reduces vibrations and improves machining accuracy.
Multi-section table system – table extensions and widening elements increase the total working area.

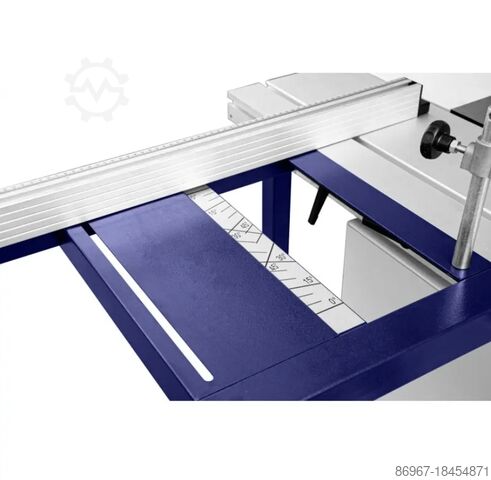

Precision rip fence – ensures repeatable dimensions during serial cutting operations.
Design and technology

The TS315 table saw has been developed as a professional woodworking saw, combining a heavy-duty structure with carefully designed ergonomics. The machine body is made of high-quality steel, providing maximum rigidity and resistance to deformation during intensive operation.

The table system, including the main table, sliding format table, extensions, and widening sections, allows comfortable handling of large workpieces. This significantly improves workflow efficiency and increases operator safety.

Smooth adjustment of cutting height and blade angle is carried out using precise handwheels, allowing quick setup according to the requirements of each task. All moving components are mounted on bearings, while the guide mechanisms ensure long-lasting and trouble-free operation.

Precision and working efficiency

Thanks to the large 315 mm blade diameter, the TS315 table saw can cut materials up to 100 mm thick while maintaining excellent accuracy. The blade speed of 4250 rpm guarantees clean, precise cuts without burning or tearing of the material.

The sliding format table combined with precision guides enables accurate material positioning and perfect angle cutting, which is essential when processing furniture boards, cabinet fronts, and structural components.

The CORMAK TS315 table saw is suitable for:

Professional woodworking factories – for intensive daily production work.
Furniture manufacturing – precise cutting of large MDF, HDF, plywood, and laminate panels.
Craft workshops – as a versatile professional table saw.
Specialized production facilities – for cutting PVC, ABS panels, and materials with similar density.
Standard equipment
Saw blade 315 × 30 × 3.2 mm
Mitre gauge
Parallel rip fence
Sliding table
Table extension and widening section

Technical specifications

Saw blade dimensions 315 × 30 × 3.2 mm
Blade speed 4250 rpm
Maximum cutting height at 90° / 45° 100 / 75 mm
Maximum cutting width with rip fence 940 mm
Bwsdpfsvxhm Djx Aglew
Main working table dimensions 800 × 365 mm
Table extension 760 × 600 mm
Table widening section 500 × 350 mm
Sliding format table 1600 × 238 mm

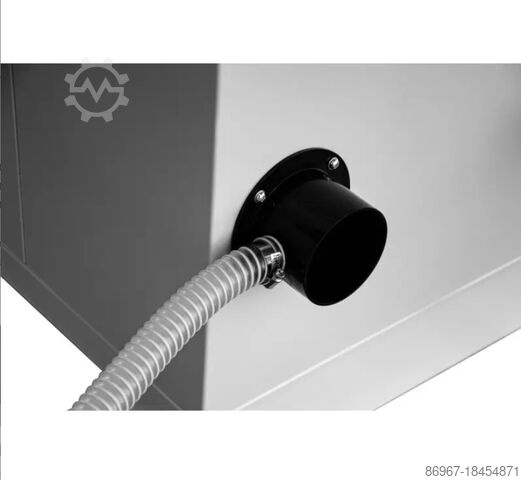

Dust extraction port diameter 100 mm
Motor power S1/S6 2.8 kW / 3.3 kW
Power supply 400 V
Weight 245 kg
Machine dimensions 1540 × 2400 × 1300 mm
