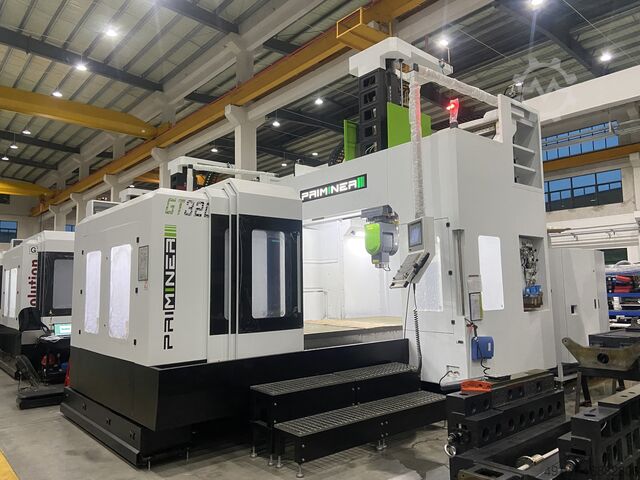

Centru de prelucrare

PRIMINER GT320-5X

Description
- High-speed and high-precision machining, widely used in the tool and die, electronics, defense, aerospace and medical industries
Standard equipment:
- Heidenhain TNC640 with 15" LCD display
- Heidenhain direct measuring system X, Y, Z
- including air purge for measuring system
- USB, CF card, Ethernet
- Main spindle, max. 24,000 min-1
- Spindle holder HSK A63
- Automatic lubrication system
- Coolant system
- Air conditioning for control cabinet
- Electronic handwheel (MPG)
- LED work lights
- Machine status indicator
Blodpfsudid Ajx Agusp
- Fully enclosed splash guard
- Safety door lock
- Tool box
- Leveling screws and bolts
- Air gun
- Operating instructions
Technical specifications:
Table:
Table size 3300 × 1700 mm
T-slots 22 x 9 x 170 mm
Max. Table load: 8,000 kg
Spindle nose table 155 - 1155 mm
Distance between the columns 2000 mm
A/C axis ±108° / ±270°
Travels:
X: 3300 mm
Y: 2700 mm
Z: 1000 mm
Spindle:
HSK A 100 holder
Spindle motor (S1/S6) 40 / 50 KW
Spindle speed 15,000 rpm, built-in spindle
Feed rate:
Rapid traverse X/Y/Z 20 m/min
Work feed 1-12,000 mm/min
AC axis max. speed 50 rpm
Tool changer:
Number of tools 60 pos.
Max. tool length Tool length 300 mm
Max. Tool diameter Ø80 / Ø125 mm
Max. tool weight Tool weight 8 kg
Accuracy:
Positioning accuracy 0.010 mm / total travel distance
Repeat accuracy 0.006 mm / total travel distance
Power supply 380V - 400V +/- 10%, 3PH, 50-60 Hz
Power consumption 70 kVA
Air consumption 250 l/min
Air pressure 6 bar
Dimensions and weight:
Dimensions (L x W x H) 10,000 x 5700 x 5800 mm
Weight 30,000 kg
