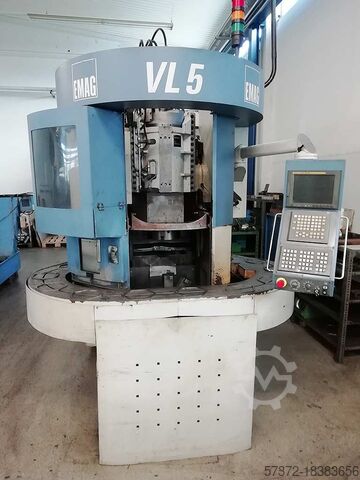

Strung vertical CNC

Emag VL 5 m LT

Stare: folosit, An de fabricație: 2007, Funcționalitate: complet funcțional, număr mașină/vehicul: 100864, Technical characteristics: Work Area # Maximum diameter of the clamping plate: 260 mm # Maximum turning diameter: 260 mm Lrodexxttfepfx Al Rjk # Maximum machining diameter: 220 mm # Maximum workpiece length: 110 mm # X-axis travel distance: 570 mm / Rapid speed in X: 60 m/min # Z-axis travel distance: 200 mm / Rapid speed in Z: 30 m/min # Y-axis travel distance: 40 mm / Rapid speed in Y: 30 m/min # Standard closed automation (number of loading nests with a workpiece diameter ,14/(80...200),18/(30...160), 30/(30...85)) Main Spindle # Spindle according to DIN 55026: Size 6 # Maximum speed: 4500 rpm # Power with 100 / 40% duty cycle: 18 / 27 kW # Torque with 100 / 40% duty cycle: 202 / 303 Nm Tool Holder with Motorized Tools # Cylindrical shank supports according to DIN 69880: 12 - VDI40 # Number of position : 12 # Maximum tool length including holder: 190 mm # Maximum speed: 6000 rpm # Maximum torque at 10% duty cycle: 37 Nm, 25% duty cycle: 26 Nm,100% duty cycle: 14 Nm Electrical Equipment # Operating voltage: 400 - 480 V # Connection power: 42 kW Dimensions # Total dimensions: Length=2680 mm(3820 with chip extractor),Wide=2040 mm,Height=2400 mm # Weight : 6500 Kg Main Features and Capabilities: # Vertical Design: Optimal chip evacuation and easy loading/unloading. # Control: GE FanucSeries 18i TB. # High Precision: Positioning accuracy in X,Z axes is ±0.001 mm Haidenhein liniar scales # Main Spindle: High power and wide speed range. # Automated Loading/Unloading: Parts are fed to and removed from the machine via integrated automation. # Live Tools: The possibility of using live tools extends the machining range to include drilling and milling. # Chip extraction conveyor # Documentation : Electronic not available & Book available Machine status : WORKING

Stare: necesită reparații (utilizat), An de fabricație: 2007, Funcționalitate: nefuncțional, număr mașină/vehicul: P-30010521, Technical characteristics: Work Area # Maximum diameter of the clamping plate: 260 mm # Maximum turning diameter: 260 mm # Maximum machining diameter: 220 mm # Maximum workpiece length: 110 mm # X-axis travel distance: 570 mm / Rapid speed in X: 60 m/min # Z-axis travel distance: 200 mm / Rapid speed in Z: 30 m/min # Y-axis travel distance: 40 mm / Rapid speed in Y: 30 m/min # Standard closed automation (number of loading nests with a workpiece diameter ,14/(80...200),18/(30...160), 30/(30...85)) Main Spindle # Spindle according to DIN 55026: Size 6 # Maximum speed: 4500 rpm # Power with 100 / 40% duty cycle: 18 / 27 kW # Torque with 100 / 40% duty cycle: 202 / 303 Nm Tool Holder with Motorized Tools # Cylindrical shank supports according to DIN 69880: 12 - VDI40 # Number of position : 12 # Maximum tool length including holder: 190 mm # Maximum speed: 6000 rpm Lredpfjxxt D Rox Al Rok # Maximum torque at 10% duty cycle: 37 Nm, 25% duty cycle: 26 Nm,100% duty cycle: 14 Nm Electrical Equipment # Operating voltage: 400 - 480 V # Connection power: 42 kW Dimensions # Total dimensions: Length=2680 mm(3820 with chip extractor),Wide=2040 mm,Height=2400 mm # Weight : 6500 Kg Main Features and Capabilities: # Vertical Design: Optimal chip evacuation and easy loading/unloading. # Control: GE FanucSeries 18i TB. # High Precision: Positioning accuracy in X,Z axes is ±0.001 mm Haidenhein liniar scales # Main Spindle: High power and wide speed range. # Automated Loading/Unloading: Parts are fed to and removed from the machine via integrated automation. # Live Tools: The possibility of using live tools extends the machining range to include drilling and milling. # Chip extraction conveyor # Documentation : Electronic not available & Book not complete Machine status : NOT WORKING # Driver spindle # Liniar scale X axis # Access door safety Euchner # Emulsion electrovalve x2

Stare: folosit, An de fabricație: 2007, Funcționalitate: funcționalitate restrânsă, număr mașină/vehicul: P-30008793, Technical characteristics: Work Area # Maximum diameter of the clamping plate: 260 mm # Maximum turning diameter: 260 mm # Maximum machining diameter: 220 mm # Maximum workpiece length: 110 mm # X-axis travel distance: 570 mm / Rapid speed in X: 60 m/min # Z-axis travel distance: 200 mm / Rapid speed in Z: 30 m/min # Standard closed automation (number of loading nests with a workpiece diameter ,14/(80...200),18/(30...160), 30/(30...85)) Main Spindle Lrodpfx Alexxr Rpj Rjk # Spindle according to DIN 55026: Size 6 # Maximum speed: 4500 rpm # Power with 100 / 40% duty cycle: 18 / 27 kW # Torque with 100 / 40% duty cycle: 202 / 303 Nm Tool Holder with Motorized Tools # Cylindrical shank supports according to DIN 69880: 12 - VDI40 # Number of position : 12 # Maximum tool length including holder: 190 mm # Maximum speed: 6000 rpm # Maximum torque at 10% duty cycle: 37 Nm, 25% duty cycle: 26 Nm,100% duty cycle: 14 Nm Electrical Equipment # Operating voltage: 400 - 480 V # Connection power: 42 kW Dimensions # Total dimensions: Length=2680 mm(3820 with chip extractor),Wide=2040 mm,Height=2400 mm # Weight : 6500 Kg Main Features and Capabilities: # Vertical Design: Optimal chip evacuation and easy loading/unloading. # Control: GE FanucSeries 18i TB. # High Precision: Positioning accuracy in X,Z axes is ±0.001 mm Heidenhain liniar scales # Main Spindle: High power and wide speed range. # Automated Loading/Unloading: Parts are fed to and removed from the machine via integrated automation. # Live Tools: The possibility of using live tools extends the machining range to include drilling and milling. # Chip extraction conveyor # Documentation : Electronic not available & Book available Machine status : WORKING # Safety switch operator panel broken

Stare: necesită reparații (utilizat), An de fabricație: 2007, Funcționalitate: nefuncțional, număr mașină/vehicul: P-30010522, Technical characteristics: Work Area # Maximum diameter of the clamping plate: 260 mm # Maximum turning diameter: 260 mm # Maximum machining diameter: 220 mm # Maximum workpiece length: 110 mm # X-axis travel distance: 570 mm / Rapid speed in X: 60 m/min # Z-axis travel distance: 200 mm / Rapid speed in Z: 30 m/min # Standard closed automation (number of loading nests with a workpiece diameter ,14/(80...200),18/(30...160), 30/(30...85)) Main Spindle # Spindle according to DIN 55026: Size 6 !!! Brand New replaced 2024 !!! # Maximum speed: 4500 rpm # Power with 100 / 40% duty cycle: 18 / 27 kW # Torque with 100 / 40% duty cycle: 202 / 303 Nm Tool Holder with Motorized Tools # Cylindrical shank supports according to DIN 69880: 12 - VDI40 # Number of position : 12 # Maximum tool length including holder: 190 mm # Maximum speed: 6000 rpm # Maximum torque at 10% duty cycle: 37 Nm, 25% duty cycle: 26 Nm,100% duty cycle: 14 Nm Electrical Equipment # Operating voltage: 400 - 480 V # Connection power: 42 kW Dimensions # Total dimensions: Length=2680 mm (3820 with chip extractor),Wide=2040 mm,Height=2400 mm # Weight : 6500 Kg Main Features and Capabilities: # Vertical Design: Optimal chip evacuation and easy loading/unloading. # Control: GE FanucSeries 18i TB. # High Precision: Positioning accuracy in X,Z axes is ±0.001 mm Heidenhain liniar scales # Main Spindle: High power and wide speed range. # Automated Loading/Unloading: Parts are fed to and removed from the machine via integrated automation. # Live Tools: The possibility of using live tools extends the machining range to include drilling and milling. # Chip extraction conveyor # Documentation : Electronic not available & Book partially available Machine status : NOT WORKING Ledpfexxkh Tsx Al Rjrk # Hydraulic electro valve x4 units # Emulsion pump broken
