Belt conveyor belt conveyor

Lippert GF 1710-650-500

Lippert belt conveyor GF 1710-650-500
RA1370
The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW brand motor with MOVIMOT inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request.
The pictures of the conveyor system shown were taken in a logistics center while still installed.

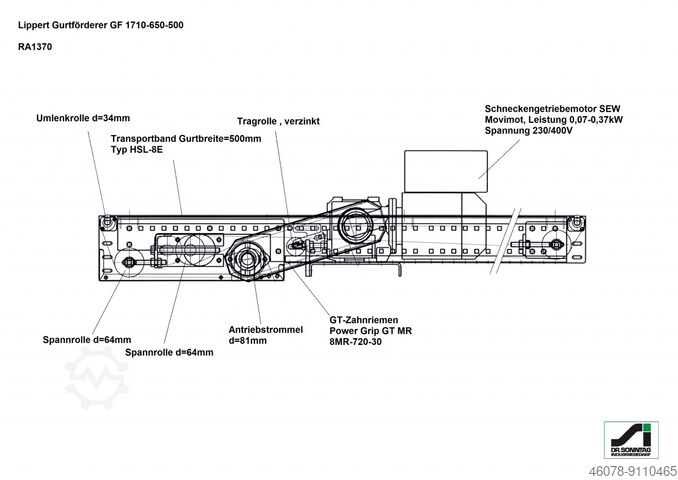

Technical data:
Conveying length (NL): 1710 mm
Frame width (NB): 650 mm
belt width (GuB): 500 mm
height (BH): 105 mm
Support feet: optionally available
Conveying speed: adjustable up and down with frequency converter
Drive: SEW gear motor R17 DT71D4/MM03/BW1
Electrical data: 50Hz V380-500, kW 0.07 / 0.37 S1
Deflection roller: Ø = 34 mm
Drive drum: Ø = 81 mm
Belt type: SNB 8 E
year of construction: 2001

Optionally available:
Supports
Side guide one and both sides
Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
